Hydraulic Tractor Loaders for Crushing Plant

Kishan Equipments

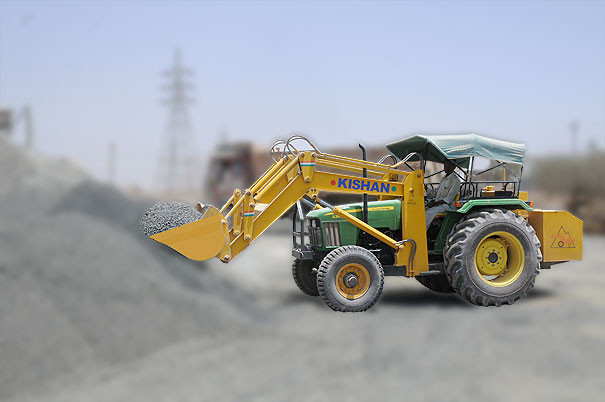

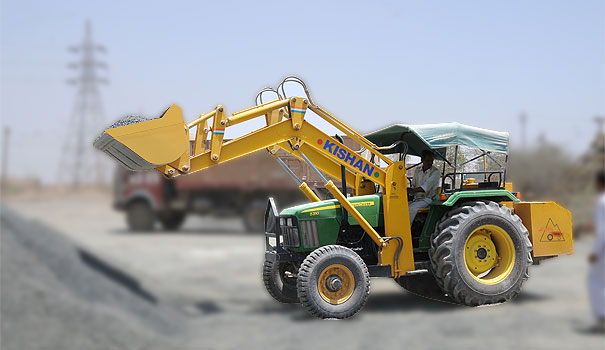

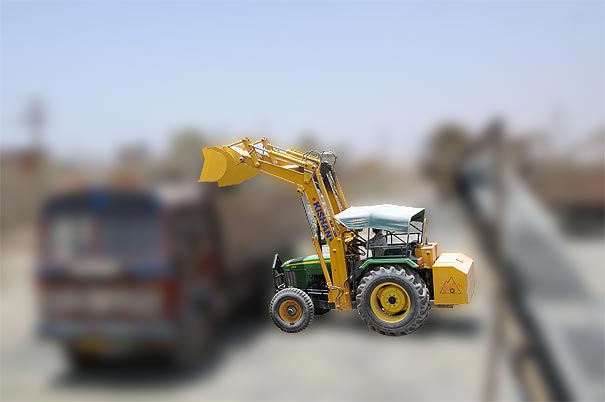

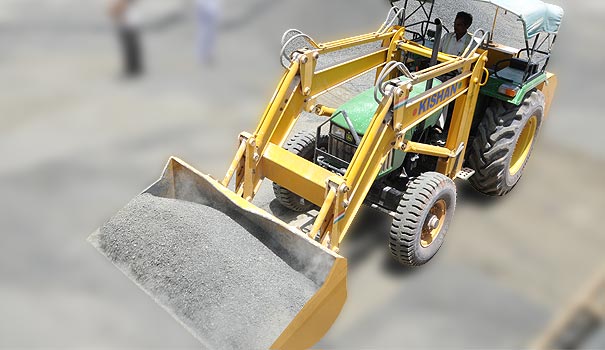

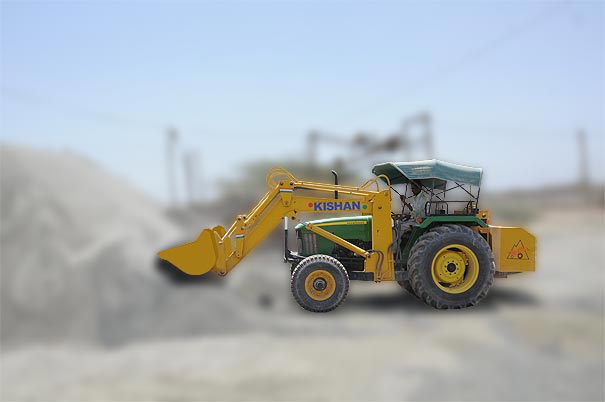

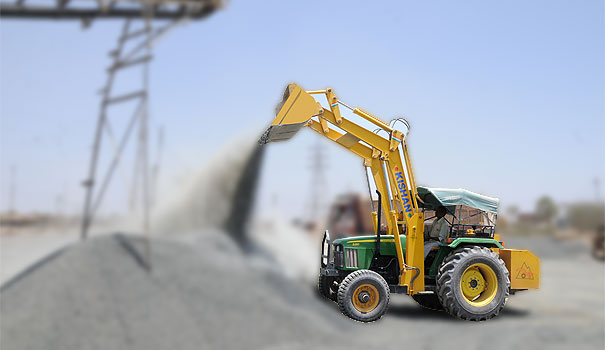

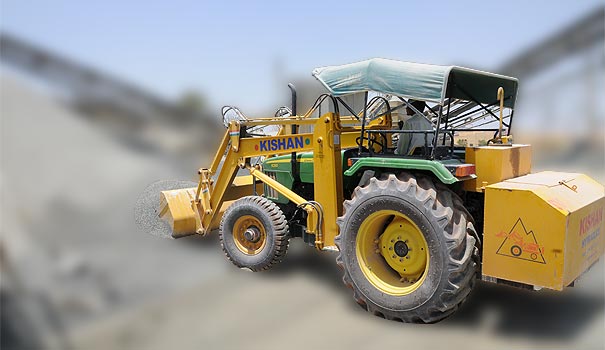

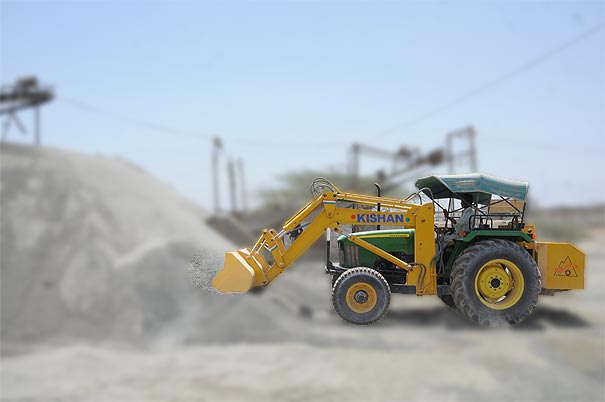

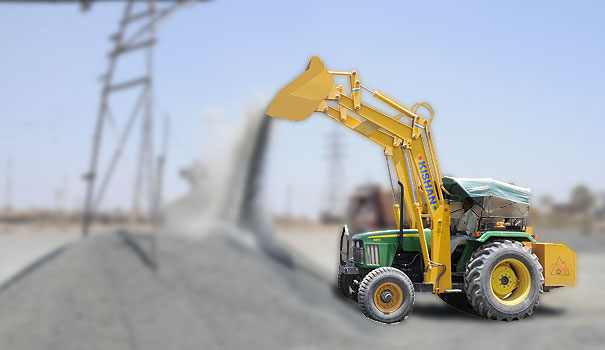

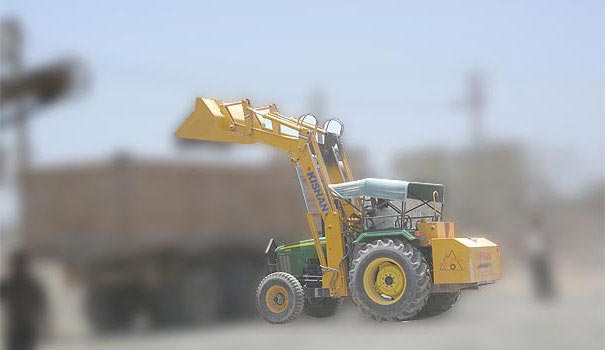

Loader attachment used with a Heavy duty range tractor of 50 to 60 HP capacity. This is a useful attachment for heavy duty work in agriculture, cement industries ,construction, ceramic & paper industries etc. The loader attachment is heavy in weight.

  • Max. Height: 12.5 Feet.
  • Max. loading Capacity: 900 Kg.
  • Cycle Time: 40 Sec.

Operational Parameters
A Maximum Pin Ht. 3800 mm
B Maximum Dumping Ht. 2600 mm
C Ground Reach At Dumping 850 mm
D Ground Reach At Loading 1900 mm
E Bucket Dumping Angle 80°
F Dig Ht. 60 mm
Specification of Bucket
1 Bucket Capacity 0.54 M³
2 Operating Load 1000 Kg.
3 Breakout Force 8792 mm
4 Bucket Width 1830 mm
Timing Performance
Raise 9 Seconds
Dump 3 Seconds
Lower 5 Seconds

Application

  • Construction Field
  • Cotton Industries
  • Cement Industries
  • Floor Tiles Industries
  • Stone Crusher Industries
  • Soil & Other Raw Material
  • Sugar Industries
  • & Many More...
